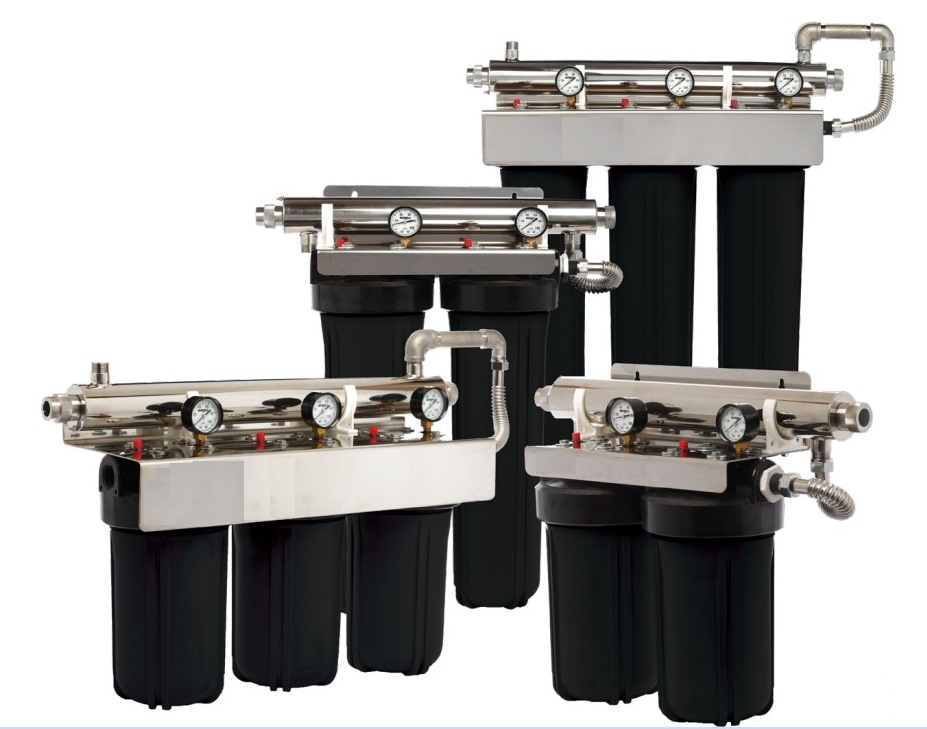

WHOLE HOUSE BB/UV SYSTEM

BB/UV whole house system houses 3 x 4.5″ by 20″ cartridges and can be used to filter sediment and odors out of the water supply, plus a housing for a specialty cartridge for iron, fluoride, sulphates, arsenic or hardness etc.

After filtering, the UV unit kills any remaining bacteria that were too small to be trapped by the filters.

The filter housings accepts BB 4.5″ diameter 20″ long water filter cartridges, including melt blown polypropylene, pleated polyester, pleated cellulose and string wound sediment cartridges, a carbon block filters for taste and odor removal and the specialty cartridge.
The Ultraviolet Disinfection system is attached to the filter system.
Canadian-made 115V/60hz CSA approved ballast.
8 gallons per minute
Lamp failure alarms-audible and visual.
Lamp change countdown clock and 7-day override feature.
Quality 304 stainless steel mirror-polished chamber.
9000-hour rated UV lamp with 4-pin connector.
Crystal quartz sleeve with silicone O-rings.
stainless steel pipe connector to the BB system
System includes:

Housing wrench
Pre-lubed o-rings
Second 5 micron pre-filter (spare)
Mounting bracket
Quick-connect ports for 3/4″ or 1″
Pressure gauges for each housing
Pressure release buttons
5 micron carbon block with 20″ pre-filter
Specialty 20″ cartridge
Full 50 year conditional warranty
Also available are dual housing and 10″ housings
